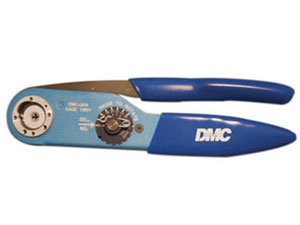

Hand Tools l Standard Adjustable Crimp Tool
 |
The DMC AF8 qualified to MIL-DTL-22520/1, has virtual limitless application within the specified wire range of 12 through 26 AWG. Over a thousand turret heads are available to adapt the tool frame to your specific military or proprietary contact/wire combination. The 8 impression crimp, which is standard in the AFB, assures absolute maximum tensible strength with almost every closed barrel contact. In addition, special indent configurations are available upon request. |
|||
Military P/N
|
DMC P/N
|
Description |
MSN |
|
 |
M22520/2-01 |
AFM8 |
TOOL FRAME |
5120-01-335-8572 |
 |
M22520/2-02 |
K1S |
POSITIONER |
5120-01-335-8592 |
 |
M22520/2-03 |
K60S |
POSITIONER |
5120-01-335-8593 |
 |
M22520/2-04 |
K151 |
POSITIONER |
5120-01-335-8594 |
M22520/2-05 |
K3 |
POSITIONER |
5120-01-335-8595 |
|
 |
M22520/2-06 |
K41 |
POSITIONER |
5120-01-335-8624 |
 |
M22520/2-07 |
K40 |
POSITIONER |
5120-01-335-8625 |
 |
M22520/2-08 |
K13-1 |
POSITIONER |
5120-01-335-8626 |
 |
M22520/2-09 |
K42 |
POSITIONER |
5120-01-335-8627 |
 |
M22520/2-10 |
K43 |
POSITIONER |
5120-01-335-8628 |
 |
M22520/2-11 |
K287 |
POSITIONER |
5120-01-335-8629 |
M22520/2-12 |
K286 |
POSITIONER |
5120-01-335-8630 |
|
M22520/2-13 |
K338 |
POSITIONER |
5120-01-335-8631 |
|
 |
M22520/2-14 |
K340 |
POSITIONER |
5120-01-335-8632 |
 |
M22520/2-15 |
K341 |
POSITIONER |
5120-01-335-8633 |
 |
M22520/2-16 |
K339 |
POSITIONER |
5120-01-335-8634 |
M22520/2-17 |
K342 |
POSITIONER |
5120-01-335-8635 |
|
 |
M22520/2-18 |
K343 |
POSITIONER |
5120-01-335-8636 |
 |
M22520/2-19 |
K330-2 |
POSITIONER |
5120-01-335-8637 |
M22520/2-20 |
K331-2 |
POSITIONER |
5120-01-335-8638 |
|
 |
M22520/2-21 |
K332-2 |
POSITIONER |
5120-01-335-8609 |
M22520/2-22 |
K212 |
POSITIONER |
5120-01-335-8610 |
|
 |
M22520/2-23 |
K267 |
POSITIONER |
5120-01-335-8611 |
M22520/2-24 |
K75S-1 |
POSITIONER |
5120-01-335-8612 |
|
M22520/2-25 |
K261-1 |
POSITIONER |
5120-01-335-8613 |
|
M22520/2-26 |
K262-1 |
POSITIONER |
5120-01-335-8614 |
|
M22520/2-27 |
K269-1 |
POSITIONER |
5120-01-335-8615 |
|
M22520/2-28 |
K373-1 |
POSITIONER |
5120-01-335-8616 |
|
M22520/2-29 |
K372-1 |
POSITIONER |
5120-01-335-8617 |
|
 |
M22520/2-30 |
K404 |
POSITIONER |
5120-01-335-8618 |
M22520/2-31 |
K406 |
POSITIONER |
5120-01-335-8619 |
|
M22520/2-32 |
K496 |
POSITIONER |
5120-01-335-8620 |
|
M22520/2-33 |
K74S |
POSITIONER |
5120-01-335-8621 |
|
 |
M22520/2-34 |
K323 |
POSITIONER |
5120-01-335-8622 |
 |
M22520/2-35 |
K532-1 |
POSITIONER |
5120-01-335-8623 |
 |
M22520/2-36 |
K473 |
POSITIONER |
5120-01-335-8596 |
 |
M22520/3-1 |
G125 |
GAGE |
5220-00-165-7604 |
 |
M22520/1-01 |
AF8 |
TOOL FRAME |
5120-01-335-8571 |
.jpg){kind=small} |
M22520/1-02 |
TH1A |
TURRET |
5120-01-335-8834 |
 |
M22520/1-03 |
TH4 |
TURRET |
5120-01-335-8835 |
 |
M22520/1-04 |
TH163 |
TURRET |
5120-01-335-8836 |
 |
M22520/1-05 |
UH2-5 |
UNIVERSAL POSITIONER |
5120-01-335-8583 |
 |
M22520/1-06 |
TP45 |
POSITIONER |
5120-01-335-8584 |
M22520/1-07 |
TP85 |
POSITIONER |
5120-01-335-8585 |
|
 |
M22520/1-08 |
TH199S |
TURRET |
5120-01-335-8837 |
 |
M22520/1-09 |
TP360 |
POSITIONER |
5120-01-335-8586 |
|
M22520/1-10 |
TP365 |
POSITIONER |
5120-01-335-8587 |
 |
M22520/1-11 |
TP465 |
POSITIONER |
5120-01-335-8588 |
 |
M22520/1-12 |
TH270 |
TURRET |
5120-01-335-8838 |
 |
M22520/1-13 |
TH285 |
TURRET |
5120-01-335-8839 |
M22520/1-14 |
TH286 |
TURRET |
5120-01-335-8840 |
|
 |
M22520/1-15 |
TP485 |
POSITIONER |
5120-01-335-8589 |
 |
M22520/1-16 |
TP513 |
POSITIONER |
5120-01-335-8590 |
 |
M22520/1-17 |
TP651 |
POSITIONER |
5120-01-335-8591 |
